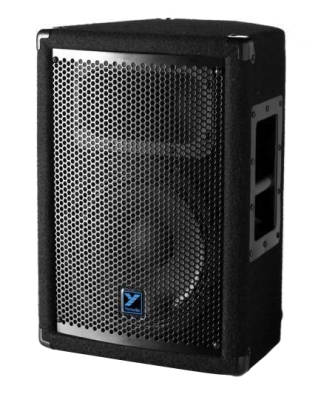

Legacy Series - YX10P
The most compact powered speaker in the line, the YX10P is an ideal solution for small PA applications where a simple playback solution is all that is needed. An integrated two channel mixer allows the YX10P to operate as a standalone PA for conferences, presentations and public address applications.
Features
- 200 Watt Integrated Amplifier
- Bi-amplified Power Module
- High Powered 10-inch Woofer
- Max SPL 119dB (Continuous)
- 90 x 40 Custom ABS Waveguide Horn
- 1.4-inch Aluminum Diaphragm Horn Driver (1-inch Throat)
- ¼-inch, XLR and 1/8-inch TRS Inputs
- Solid Plywood Cabinet Construction
- All Metal Grille, Integrated bar Handles & Stand Mount
Overview

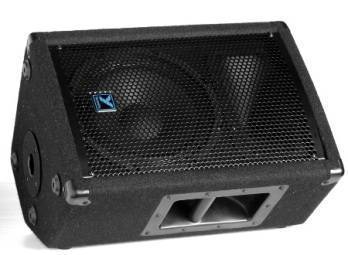

Versatile input section allows direct connect via XLR, ¼-inch and 1/8th-inch TRS to microphones, instruments and iPods. Modified trapezoidal shape allows the YX10P to be used as a powered low profile wedge monitor as well as a front-of-house cabinet making an extremely versatile PA solution for rental houses.
The YX10P can be easily combined with the YX10SP powered subwoofer for larger PA applications where space is at a premium; yet additional bottom end may be required.
Specifications
| System Type | Active Loudspeaker |
| Active or Passive | Active |
| Power Rating (Watts) | 200 Watts |
| Max SPL (dB) | 119 dB |
| Frequency Response (Hz +/- 3dB) | 70Hz - 20kHz |
| Crossover Frequency (Hz) | 3.5kHz |
| Driver Configuration | 10-inch / 1-inch |
| HF Driver(s) | 1.4-inch Aluminum Diaphragm / 1-inch exit |
| HF Power Rating (Watts) | 20 Watts |
| HF Dispersion (°H x °V) | 90 (h) x 40 (v) |
| HF Protection | Peak Limiter |
| LF Driver(s) | 10-inch Ceramic Magnet |
| LF Power Rating(Watts) | 150 Watts |
| LF Protection | Peak Limiter |
| Total Power (Watts) | 170 Watts |
| Power Switch | Yes - back |
| Power Consumption (typ/max) | 120 / 200VA |
| Inputs | XLR / 1/4-inch TRS / 1/8th-inch (3.5mm) TRS |
| Mixer Controls | Independent Gain Controls (Inputs 1 and 2), Global Bass/ Treble Control, Link Input and Output |
| Level Controls | Yes |
| EQ Controls | Yes - Bass / Treble Controls |
| Bar Handles | 1 |
| Pole Mount Adapter (1 3/8"-3.5cm) | Yes |
| Enclosure Materials | 15 mm (5/8-inch) plywood |
| Baffle Material | 15 mm (5/8-inch) plywood |
| Grille | Custom Punched Black Perforated Metal |
| Covering / Finish | Black Ozite |
| Dimensions (DWH xbackW, inches) | 12 x 13.5 x 19 x 5.75 |
| Dimensions (DWH xbackW, cm) | 30.5 x 34.3 x 48.3 x 14.6 |
| Weight (lbs/kg) | 28 / 12.7 |
Specifications subject to change without notice
