YXL 15” Unpowered Loudspeaker

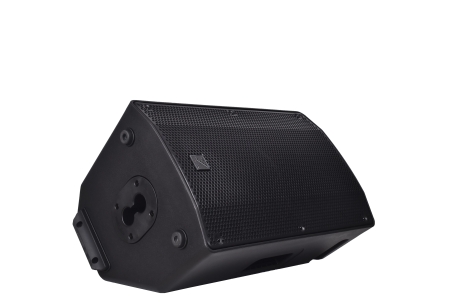

The YXL Series is Yorkville Sound’s most affordable and versatile speaker lineup. Designed as an all-purpose speaker to be integrated into small and medium systems, YXL unpowered loudspeakers can be used vertically on the floor or a speaker stand, wedged as a stage monitor, or flown.

The YXL15 uses a single 15” driver and a 90° x 40° horn with a 1-inch throat and 1-inch compression driver. The cabinet is constructed with strong polypropylene for reliability and durability.

YXL delivers clear sound, exceptional value, and the best price-to-performance ratio of any Yorkville Sound PA series.

Features

  • 1200 W Peak Power (600 W Program)
  • 15” Woofer with 3” Voice Coil
  • 1” Compression Driver
  • Polypropylene Cabinet Construction

Specifications

System Type Unpowered Loudspeaker
Nominal Impedance (Ohms)
Sensitivity (dB AT 1Watt/1m) 98 dB
Max SPL 125 dB Continuous
Frequency Response (Hz +/- 3dB) 45 Hz - 16 kHz
Dispersion (H x V) 90° x 40°
Crossover Frequency 1.6 kHz
HF Horn Integrated into Baffle
LF Driver(s) 15” with 3” Voice Coil

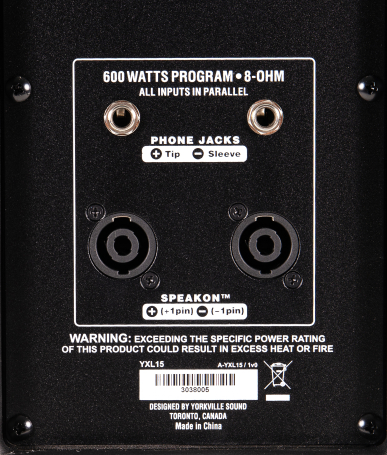

Inputs 2x Speakon
2x 1/4"
Bar Handles 3 (1x Each Side, 1x Back)
Flypoints 2 (2x Top, 1x Pullback)
Flying Hardware M8 Metric Threading
Pole Mount Adapter (1 3/8 Dual Angle (1x Bottom)
Enclosure Materials Polypropylene
Dimensions (DWH) 14.8” x 17” x 27.4” (37.5 cm x 43.2 cm x 70.4 cm)
Weight 50 lbs / 23 kg

Specifications subject to change without notice

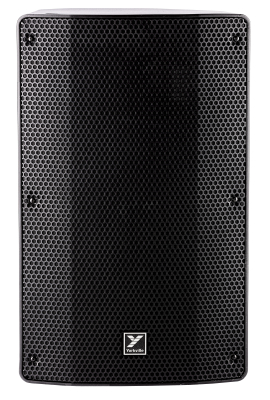

image 1 YXL15 YXL 15” Unpowered Loudspeaker

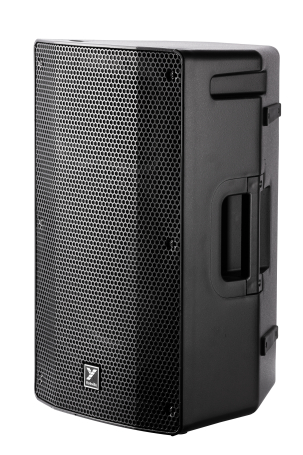

 image 2 YXL15 YXL 15” Unpowered Loudspeaker
 image 3 YXL15 YXL 15” Unpowered Loudspeaker

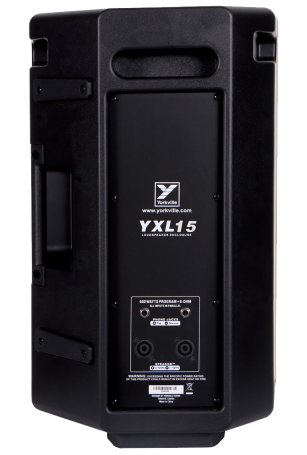

 image 4 YXL15 YXL 15” Unpowered Loudspeaker
 image 5 YXL15 YXL 15” Unpowered Loudspeaker

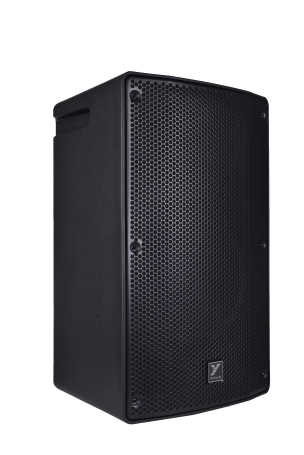

 image 6 YXL15 YXL 15” Unpowered Loudspeaker
